RTV-CNC

ROTARY TABLE VERTICAL GRINDERS

RANGE

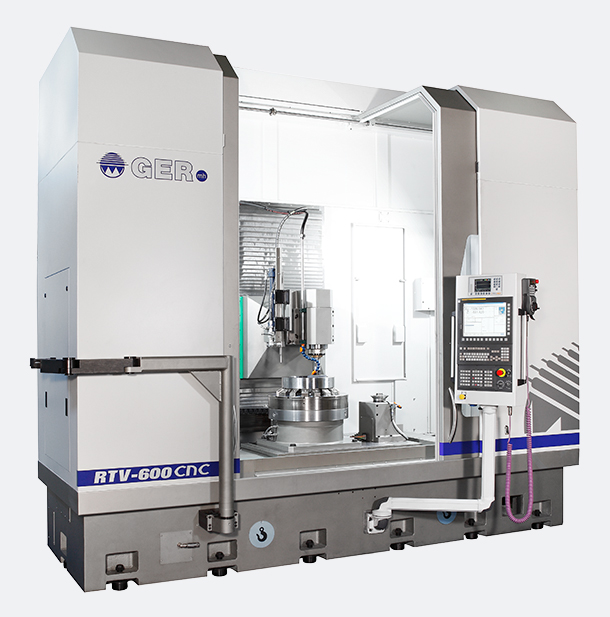

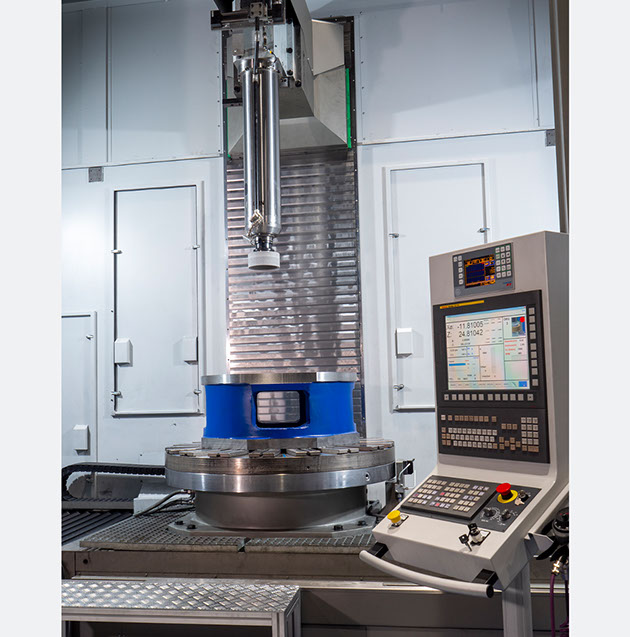

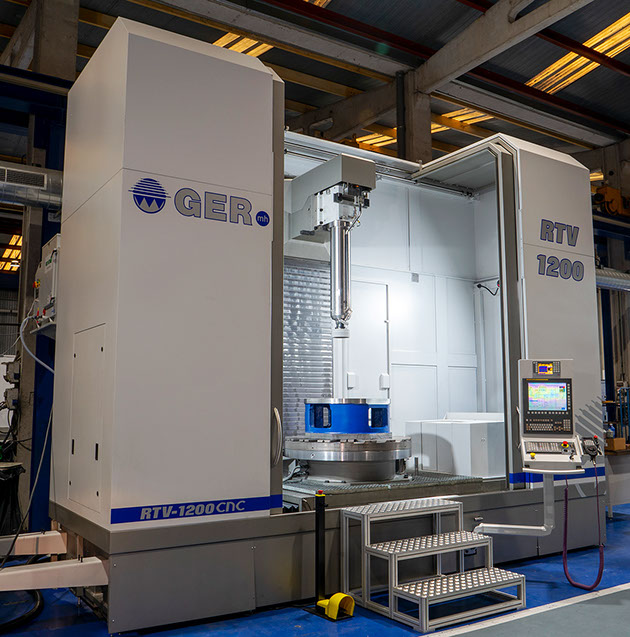

The RTV-CNC range of rotary table vertical grinding machines use a ‘T’ shaped bed with a rigid, fixed column which incorporates the vertical Z axis wheel head movement.

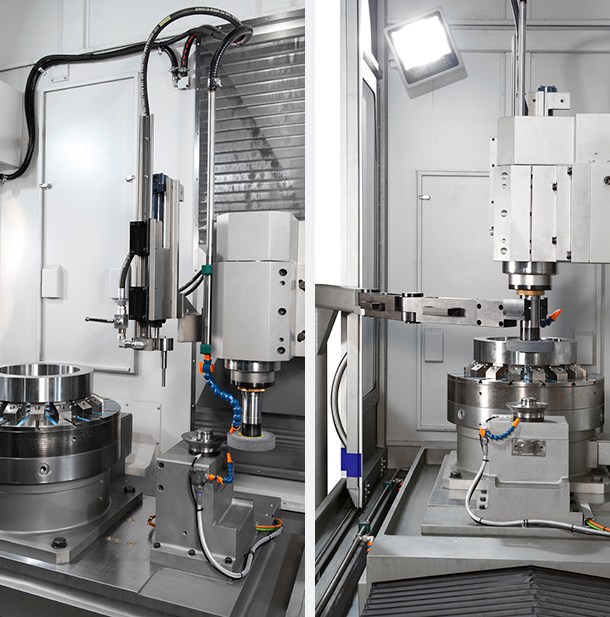

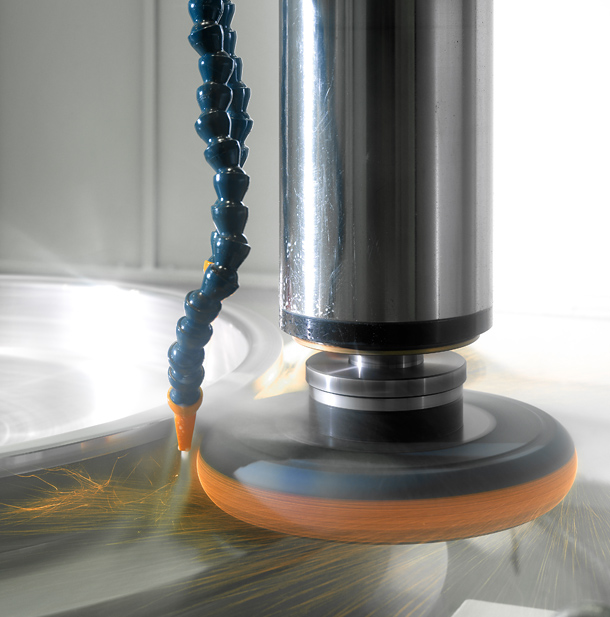

The X axis longitudinal table movement is directly mounted on the front of the bed with the integrated rotary chuck which includes C axis.   These machines provide an excellent solution with maximum single spindle flexibility for large diameter, heavy components which require high precision internal, external and face grinding – for example motor casings, gears, bearings and turbines found in sectors such as power generation, aerospace and marine etc.



Using a RTV-CNC for heavier components has a distinct advantage over a horizontal grinder in that, rather than constantly fighting gravity, the weight of the component actually makes it easier to load and position it on the rotary table.





RTV600

800

170

600

500

1.500

0-100

160

18.500

RTV1000

1.200

170

1.000

700

2.000

0-100

160

29.500

RTV800

800

170

800

500

1.500

0-100

160

19.500

RTV1200

1.200

170

1.200

700

4.000

0-100

160

30.500

RTV1500

1.500

170

1.500

700

4.000

0-85

160

31.000

RTV1800

1.800

170

1.800

700

6.000

0-50

160

36.000

CHARACTERISTICS

Max grinding diameter (mm)

Minimum internal grinding diameter (mm)

Table diameter (mm)

Maximum grinding height (mm)

Max component weight (Kg)

Table speed (rpm)

Spindle diameter (mm)

Approximate machine weight (Kg)

Software

RTV-CNC



The machines are equipped with the latest generation FANUC 0i-TF control, motors and equipment.



The powerful user-friendly 15” touch screen control uses graphic-based software specially created by GER.  The interactive software helps make it easier for less experienced operators to use.



Touch-screen programming with user-friendly GER graphic based grinding cycle screens to guide the operator



MAIN FEATURES:

• Intuitive programming allows difficult grinding and dressing programmes to be linked to create pre-defined simple cycles.

• The step-by-step programming philosophy makes it easier to programme complicated jobs.

• USB and Ethernet connections enable programme input and saving.

• A useful feature enables the operator to modify the process during automatic cycle without affecting the original programme.

• Software page application for grinding time calculations.

• On-screen messages help the operator to choose the most suitable grinding operation for the process.

• Data base screen which allows customers to create and save the characteristics of grinding wheels and diamond tooling.

• Wheel dressing is made easy with pre-defined graphic profiles.

• Powerful software allows on screen graphic visualization and direct input of complex non-standard profiles to be programmed using ISO code.

• Possibility of grinding different profiles using the profile following cycle.

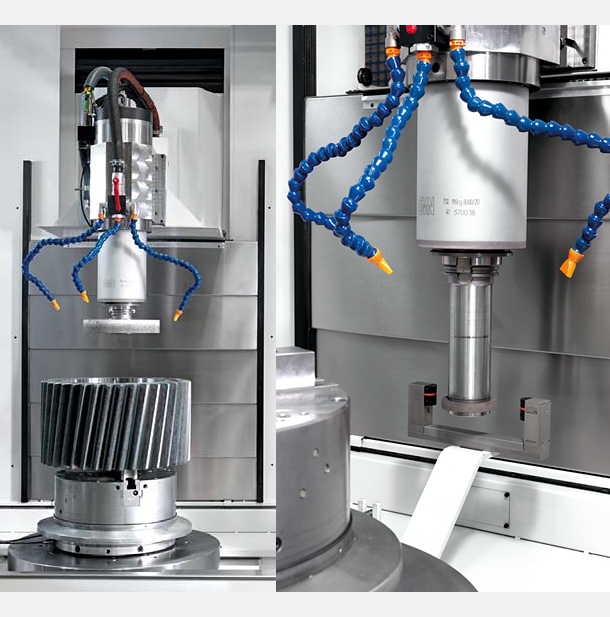

• Measuring probe enables precise size control before, during and after each grinding operation.
