CM-CNC

RANGE



For components up to 4000mm in length, 600mm in diameter and up to 2000 kgs in weight.

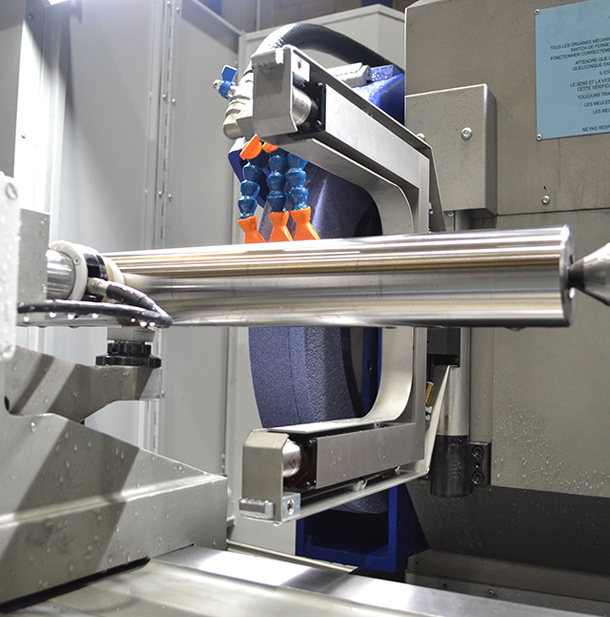

The CM-CNC range of grinding machines represents an excellent balance between capacity and strength and is designed to work with lighter, larger diameter components.  It also has a good range of between centre capacities and is ideally suited to grind precision, large diameter print rolls and hollow shafts etc, producing excellent surface finishes.



The CM-CNC, as with all GER machines, offers an extensive choice of machine customisation together with a large variety of accessories to enable each machine to be tailored to an individual customer’s production requirements.







CM-1.500 CNC

1.500

300

595

2.000

150

(Optional 350)



600 x 80 x 304

15

10-500

10.000

CM-2.500 CNC

2.500

300

595

2.000

150

(Optional 350)



600 x 80 x 304

15

10-500

12.000

CM-2.000 CNC

2.000

300

595

2.000

150

(Optional 350)



600 x 80 x 04

15

10-500

11.000

CM-3.000 CNC

3.000

300

595

2.000

150

(Optional 350)



600 x 80 x 304

15

10-500

  14.000

CM-4.000 CNC

4.000

300

595

2.000

150

(Optional 350)



600 x 80 x 304

15

10-500

15.000

CHARACTERISTICS

Distance between centres (mm)

Centre height  (mm)

Max grinding diameter (mm)

Max load between centres (kg)



Max load during live grinding  (Nm)



Wheel dimensions  (mm)

Wheel head motor power  (Kw)

Work head speed  (rpm)

Machine weight  (Kg)

Software

CM-CNC

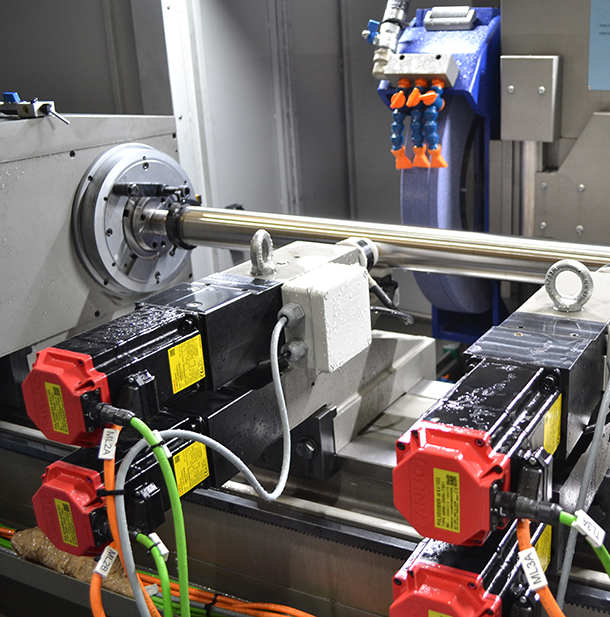

The machines are equipped with the latest generation FANUC 0i-TF CNC control, motors and equipment.



• Touch screen programming with user-friendly GER graphic based grinding cycle screens to guide the operator.

• Possibility of grinding different profiles using the profile following cycle.

• Powerful graphic based programming for non-circular profile grinding option (C axis).

• Graphic page for simple adjustment of component taper, camber, etc.

• Wheel dressing is made easy with pre-defined graphic profiles.

• Powerful software allows on-screen graphic visualization and direct input of complex non-standard profiles to be programmed using ISO code.

• USB and Ethernet connections enable programme input and saving.

• Useful feature enables the operator to modify the process during automatic cycle without affecting the original programme.

• Software page application for grinding time calculations.

• The software can be modified to answer to specific customer process or automation requirements.

• Data base screen which allows customers to create and save the characteristics of grinding wheels and diamond tooling.
